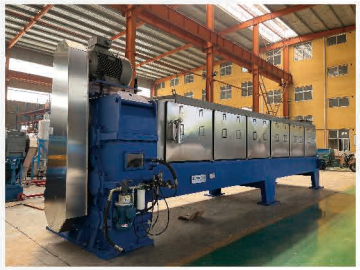

Twin-Screw Press
Short Description:
Introduction Sensitar Twin-screw Press is ideal for extract-ing liquid from cooked fish or meat as part of wet rendering processes. These units provide you with an effective way to remove water from the fats and solids content in cooked fish or meat. This then helps you improve the overall efficiency of subsequent processing and paves the way to significant energy savings. Application Twin-screw presses are often used to extract liquid from cooked fish or meat as part of low-temperature wet r...
Introduction
Sensitar Twin-screw Press is ideal for extract-ing liquid from cooked fish or meat as part of
wet rendering processes. These units provide you with an effective way to remove water
from the fats and solids content in cooked fish or meat. This then helps you improve the overall efficiency of subsequent processing and paves the way to significant energy savings.
Application
Twin-screw presses are often used to extract liquid from cooked fish or meat as part of low-temperature wet rendering processes.
They are also ideal as the first stage in mechanical dewatering processes, before the material enters a centrifugal decanter centrifuge.
They can also be used in high-capacity feather plants.
BENEFITS
●High compression rate ensuresefficient continuous fat extraction
●Rugged and reliable equipment,with a long service life
●Low maintenance costs
Technical Specifications
Type | CondensingCapacity(t/h) | Dimension(mm) | Power/motor(kW) | Weightkg) | ||
Length (L) | Width (W) | Height (H) | ||||
ACV015 | 900 | 900 | 1800 | 3950 | 1x7.5 | 2200 |
ACV021 | 1300 | 3900 | 1805 | 4050 | 2x5.5 | 2750 |
ACV030 | 1800 | 4450 | 2300 | 4150 | 2x7.5 | 3350 |
ACV034 | 2000 | 4450 | 2300 | 4150 | 3400 | |
ACV042 | 2500 | 6400 | 2300 | 4050 | 3*5.5 | 4600 |
ACV055 | 3300 | 6400 | 2300 | 4050 | 3x11 | 4800 |
ACV072 | 4300 | 8350 | 2300 | 4150 | 4x11 | 5700 |
ACV090 | 5400 | 10300 | 2300 | 4200 | 5x11 | 7000 |
ACV160 | 9600 | 10300 | 5250 | 5300 | 2x30 | 17000 |
HM3000 | 3000 | 5110 | 3000 | 4045 | 2x11 | 5700 |
HM5000 | 5000 | 9120 | 3000 | 4045 | 3x11 | 8500 |
HM7000 | 7000 | 10580 | 3000 | 4145 | 4x11 | 11300 |
